LiFePO4 Battery Pack
Created with Pixso.

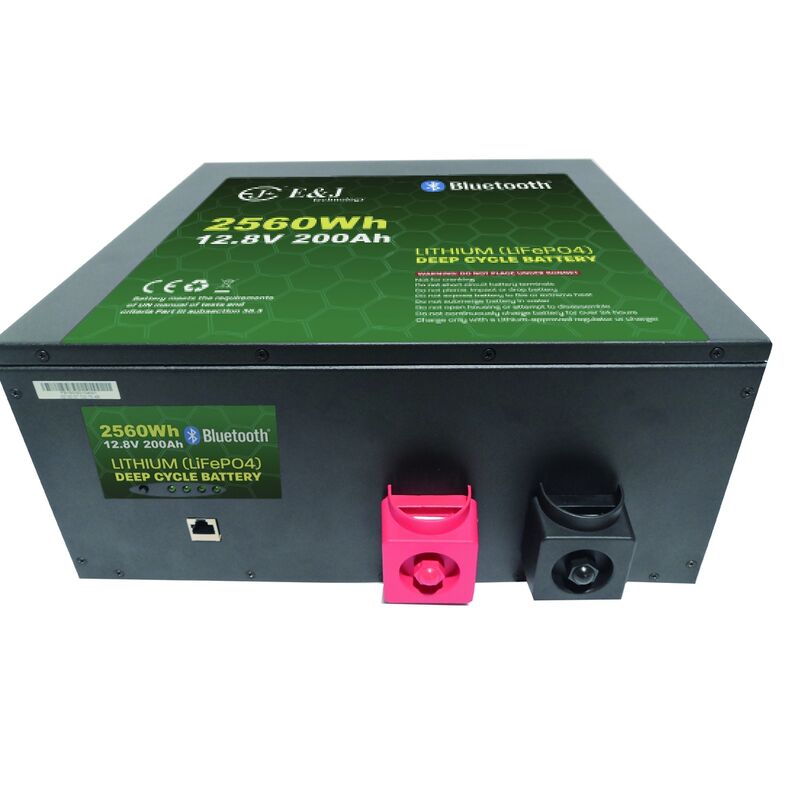

Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat

Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat

Brand Name: EJ
Model Number: EJ12200FEB
MOQ: 1
Price: $1,035
Detail Information
Place of Origin:
Guangdong, China
Max Load Quantity(cells):
4
Battery Type:
Liquid
Cycle Life:
+4000 Cycles
Dimension (L*W*H):
360*350*160mm(14.17*13.78*6.30in)
Application:
Boats, Uninterruptible Power Supplies, Electric Wheelchairs, Solar Energy Storage Systems, Golf Carts, Electric Power Systems, Electric Forklifts, SUBMARINES, Electric Vehicles, RV/ EV/caravan
Weight:
22.7kg(50.04lb)
Operating Temperature(℃):
-20-60
Cathode Materials:
LiFePO4
OEM/ODM:
Accepatable
Highlight:

Commercial 12V 200Ah Lithium Battery

,

ODM 12V 200Ah Lithium Battery

Product Description
Product Description
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Item Specification
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat

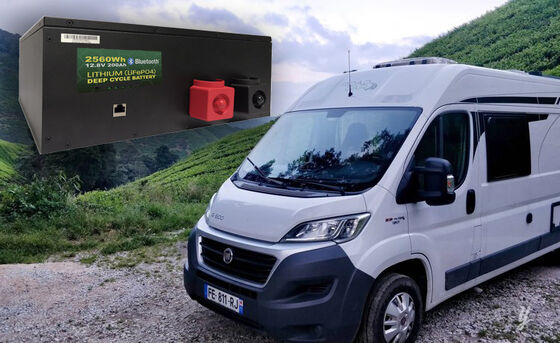

Lithium batteries for Caravan/ Motorhome Ducato under-seat battery

The E&J Lithium LiFePO4 batteries are specially designed for mobile homes and for installation under the passenger seat. Many of the common motorhomes such as Fiat Ducato, Citron, Jumper, or Peugeot require an extra flat lithium battery for installation under the passenger seat. Depending on the seat console, 1~2 batteries can be installed in a row. with the new lithium iron technology, you can quickly and easily replace your previous lead-Gel or AGM battery for the first time.

Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat

Increased voltage

Connect up to 4 E&J lithium batteries in series to be 12/24/36/48V.

Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat

Increased capacity

Connect up to 4 E&J lithium batteries in parallet to be 200Ah/300Ah/400Ah ...

Item Specification

Technical Specifcations

Electric

Nominal voltage

12.8V

Nominal capacity

200 Ah

Stored energy

2560 Wh

Internal resistance

≤ 30mΩ

Cycles

>2000 cycles (see chart)

Self discharge

< 3% per month

Energy efciency

> 96%

Standard Charge

Charge voltage

14.6V ± 0.1V

Charge mode

CC/CV : Constant Current / Constant Voltage

Maximum continuous charge current

50A/ 100A

BMS charge cut-off voltage

14.8V ± 0.1V

Standard Discharge

Continuous discharge current

150 A

Maximum discharge current (30s)

200 A

BMS discharge cut-off voltage

10 V

Environment

Charge temperature range

0°C- 45°C @60±25%

Discharge temperature range

-20°C – 60°C @60±25%

Storage temperature

0°C – 40°C @60±25%

IP protection level

IP65

Mechanical

Cell assembly

Prismatic

Casing material

rugged powder-coated steel.

Dimensions

360mm * 350mm* 160mm

Weight

22.7 kg

Terminal

Standard 1

Performance characteristics
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Certifications
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Application
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat

Lithium RV Batteries

In ordering to powering your ideal RV experience. We build our batteries to perform better, last longer and provide the deliverable power needed for weekend adventures or full-time boondocking. Our batteries were designed as replacements for the most common lead acid sizes on the market.

Lithium Marine Batteries

EJ Lithium batteries charge much faster than lead acid batteries, which makes it beneficial for any marine system. They reduce the overall weight of your battery bank and can make a significant impact on your boat’s top speed and overall fuel consumption. Replacing your lead acid batteries with our LiFePO4 batteries can increase your power by two to three times!

Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat

Lithium Golf Carts Batteries

Nothing ruins your game faster than having the golf cart you’re driving run out of juice. But that’s something you don’t need to worry about with EJ Lithium batteries, which has the energy to get you going for longer.

EJ lithium battery was designed specifically to meet the power and energy needs in all types of golf cars, utility vehicles, AGVs and LSVs.

LITHIUM BATTERY FOR ENERGY STORAGE

SOLAR, ALTERNATOR, GENERATOR, WIND

E&J launched LiFePO4 (Lithium Iron Phosphate) battery which is for solar energy storage. 6V /12V / 24V LiFePO4 battery packs provide a more energy-dense and energy-efficient battery chemistry over the traditional batteries. The solar street lights are required to stay lit for more than one night if the sun is not available for a couple of days. It means that it needs a powerful backup energy to ensure that the operation of the Solar street lights.

Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat

Lithium MOBILITY, SCOOTERS AND WALKER

DEEP CYCLE LITHIUM BATTERY FOR E-VEHICLES

Main advantages of our rechargeable batteries:
Low self-discharge and Long shelf time
Low Internal Resistance
Long life cycles
Good consistency
Safe and good liability

LITHIUM BATTERIES FOR LIGHTS AND LAMPS

EMERGENCY LAMPS AND EXIT LIGHTS

There are now more and more concerns about the toxic and harmful substances found in Ni-CD and SLA batteries. These toxic substances are harmful to humans and the environment if not disposed of and recycled properly. In view of environment and health, Lithium Iron Phosphate contains no toxic heavy metals and no carcinogens. This provides a significant reason to consider lithium-ion over Ni-CD batteries.

Commercial Vehicle 12V 200Ah Lithium Battery Fitting Under The Front Drivers Passengers Seat
