| MOQ: | 1 |
| Price: | €87.60-91.98 |
| Advantages |
E&J Technology Group held more than 20 engineers on the batteries and batteries BMS field who can provide technical support on active balancing BMS solutions for different application. The active equalizer BMS we designed and produced have 1.0A 2.0A 3.0A 5.0A 10.0A balancing current and support 50A 100A 200A 300A 500A 600A 1000A discharge rate for e-bike, e-scooters, solar storage, e-boat, e-car, evs, RVs, etc..Contact our sales team which are also with technical background to provide you technical solutions for your projects. In order to avoid others to copy our design, we don't show the custom active balancing BMS solutions/product details well on this link. Any customers need us to provide active BMS solutions, feel free to contact us. |
|---|---|
| Size | 150 * 140 * 25 mm |
| Function | Balance for Li-ion Lithium,LiFePO4 battery pack |
| Related Product | There are other models for optional,such as 4S,5S,6S,7S,8S etc |

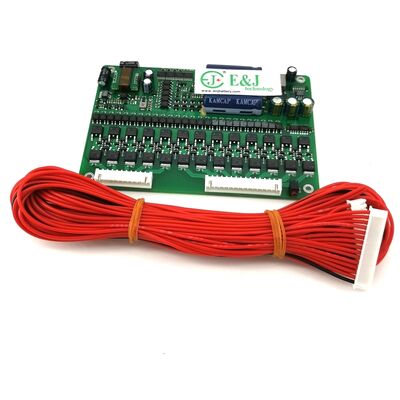

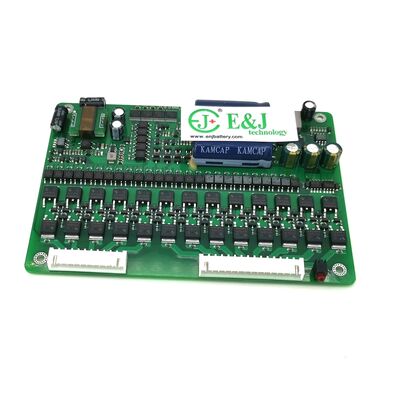

8S Lithium Battery Balancer For 24V LiFePO4 Li-Polymer Li-ion LTO 18650 DIY Active equalizer Winston Thundersky CALB BYD
Features:
Benefits:
| BATTERY AH LIMITS | 50-1000AH |
|---|---|
| LITHIUM BATTERY VOLTAGE LIMITS | 2V ~ 5V |
| BATTERY COUNT LIMIT | 8S-Unlimited |
| BMS LIMIT | Can work with BMS or can work independently |
| BATTERY TYPE | Li-ion,Li-polymer,LiFePO4, |
| BALANCER CONFIGURATION | Series and Paralleled |
| VOLTAGE DIFFERENCE AFTER USING THE BALANCER | <10mV |
| VOLTAGE DIFFERENCE VS. BALANCE CURRENT | 300mV-1A; 1V-3A |
| POWER CONSUMPTION | <50mW per 1S |
| BALANCING | High to Low |
| WORKS DURING CHARGE | Yes |
| WORKS DURING DISCHARGE | Yes |
| WORKS DURING STORAGE | Yes |
| BALANCING AMPERAGE | 6-10A |
| CONTINUOUS BALANCING AMPERAGE | 6A |
| MAX BALANCING AMPERAGE | 10A |
| BALANCE ACCURACY (%) | 0.5 |
| BALANCE METHOD | Energy Transfer & Dynamic |
| WORKING EFFICIENCY WHEN BALANCE CURRENT IS 1A | >94% |
| RELATIVE HUMIDITY (%) | 45-90% |
| WORKING ENVIRONMENT | Low Humidity |
| WORKING TEMP (C) | -40 to 80 |
| STORAGE TEMP (C) | -40 to 100 |
Before balancing VS After balancing
The effect of active and passive balancer before and after balancing.
Active balancer VS Passive balancer
Active balancer is More avdanages than passive balancer.
Active balancer work range
Active balancer can balance in the charge and discharge and storage.
