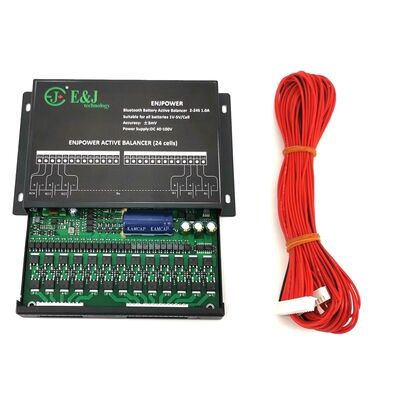

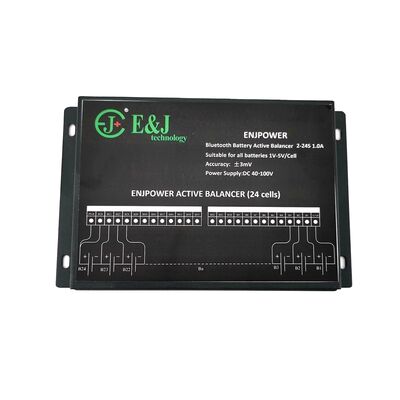

EJAB-JK-B1A24S 1A Active Battery Balancer 12S - 24S Aluminum Bluetooth Battery Equalizer

12S ~ 24S 1A Lithium Battery Protection Board Active Equalizer Balancer For Li-ion Lipo LiFepo4 LTO With BT APP

The voltage acquisition range is 1V-5V and the accuracy is +/-5mV.

It can be applied to all kinds of lithium batteries on the market such as lithium iron phosphate, lithium,Lipo,Li-ion and LTO.

The equalizer has BT communication function and is equipped with mobile APP software.

You can check the cell voltage, view the balance status, and modify the setup parameters through the BT connection equalizer.

It can be used in small sightseeing vehicles, scooters, shared cars, high-power energy storage, base station backup power,

solar power stations and other products in the battery pack.

Features:

• Support 12-24S battery pack
• Real-time, active, energy transfer equalization, after the balance is reached, the pressure difference between the cells is less than or equal to 3mV
• Support all battery types such as lithium iron phosphate, lithium,Lipo,Li-ion and LTO, super capacitor
• The equalization current is set independently in the range of 0.1-1A, independent of the cell voltage difference
• Support balanced cascading to apply to battery packs above 24S, theoretically there is no limit
• BT communication function, equipped with APP, check battery status in real time
• Balanced resistance detection, abnormal contact failure is found in advance
• No external power supply, direct battery pack power supply, power supply range: 40V-100V
• Low voltage shutdown function to prevent battery damage

24S connection

20S connection

Series connection of two balancer modules
