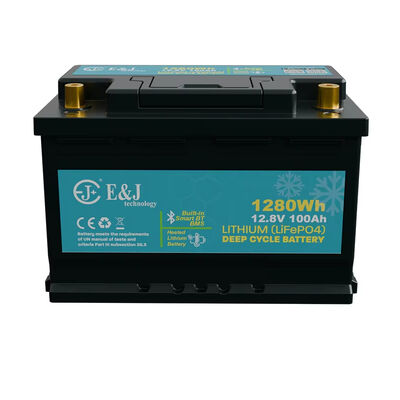

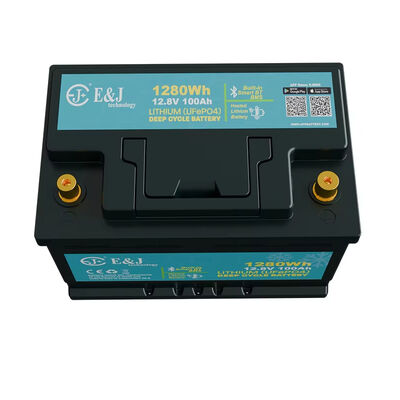

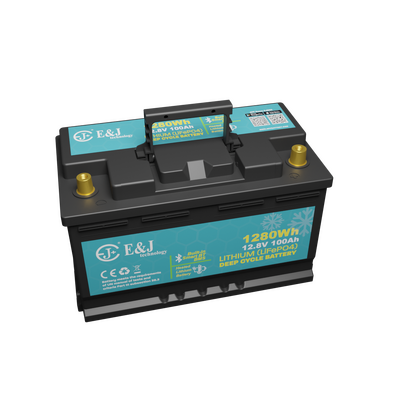

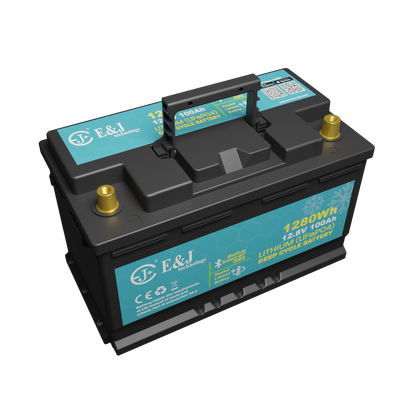

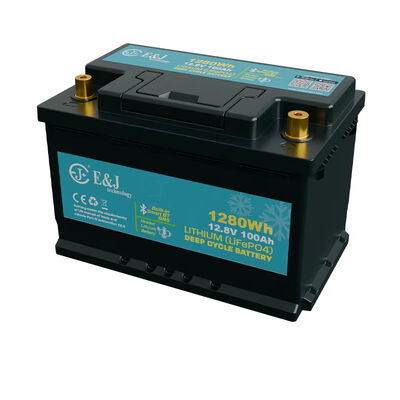

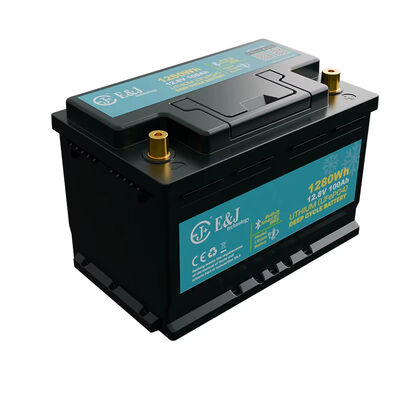

12.8V 100Ah H6 BT Heating LiFePO4 Battery Pack VW T5 T6 T6.1 Underseat +4000 Cycles

Detail Information

Place of Origin:

Guangdong, China

Max Load Quantity(cells):

Battery Type:

Liquid

Cycle Life:

+4000 Cycles

Dimension (L*W*H):

279*175*189mm(10.98*6.89*7.44in)

Application:

Electric Wheelchairs, Solar Energy Storage Systems, Electric Power Systems, Electric Forklifts, SUBMARINES, Electric Vehicles

Weight:

10.8kg(23.81lb)

Operating Temperature(℃):

-20°C- +60°C

Cathode Materials:

LiFePO4

Highlight:

Product Description

Parameters/ Models		50Ah	60Ah	100Ah	200Ah
Electric	Nominal voltage	12.8V	12.8V	12.8V	12.8V
	Nominal capacity	50Ah	60Ah	100Ah	200Ah
	Stored energy	640Wh	768Wh	1280Wh	2560Wh
	Cold Cranking Amps (CCA)	700	900	1500	1500
	Internal resistance	≤ 50mΩ	≤ 50mΩ	≤ 50mΩ	≤ 50mΩ
	Cycles	>5000 cycles	>5000 cycles	>5000 cycles	>5000 cycles
	Self discharge	< 3% per month	< 3% per month	< 3% per month	< 3% per month
	Energy efciency	> 96%	> 96%	> 96%	> 96%
Standard Charge	Charge voltage	14.6V ± 0.1V	14.6V ± 0.1V	14.6V ± 0.1V	14.6V ± 0.1V
	Charge mode	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage
	Maximum continuous charge current	20A/ 50A	20A/50A	30A/100A	30A/100A
	BMS charge cut-oﬀ voltage	15.6V ± 0.1V	15.6V ± 0.1V	15.6V ± 0.1V	15.6V ± 0.1V
Standard Discharge	Continuous discharge current	100A	100A	200A	200A
Standard Discharge	BMS discharge cut-oﬀ voltage	14.8V ± 0.1V	14.8V ± 0.1V	14.8V ± 0.1V	14.8V ± 0.1V
Environment	Charge temperature range	0°C- 45°C @60±25%	0°C- 45°C @60±25%	0°C- 45°C @60±25%	0°C- 45°C @60±25%
	Discharge temperature range	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%
	Storage temperature	0°C – 40°C @60±25%	0°C – 40°C @60±25%	0°C – 40°C @60±25%	0°C – 40°C @60±25%
	IP protection level	IP65	IP65	IP65	IP65
Mechanical	Cell assembly	Prismatic	Prismatic	Prismatic	Prismatic
	Casing material	ABS	ABS	ABS	ABS
	Weight	6kg	8kg	11.5 kg	21.5
	Terminal	SAE+M8	SAE+M8	SAE+M8	SAE+M8
