| Brand Name: | EJ |
| Model Number: | EJ-Balancer-32S |
| MOQ: | 10 |
| Price: | $25-30 |
Pls confirm which type battery is it use for, Li-ion or LiFePO4? When you order before.

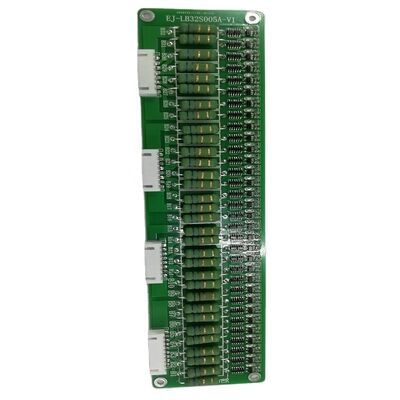

Cell Balancing Board for:
| Parameter | Value |
|---|---|
| Model | 3S-16S Li-ion/Li-Polymer or LiFePO4 Battery balance board |
| Operation Temperature | -10~+65 degree |
| Balancing Detection Voltage | 4.175+/-25mV |
| Balancing Release Voltage | 3.6V+/-25mV |
| Balancing Current | 1000+/-100mA; 1500+/-50mA |
| Self-consumption | <50uA |
| Balancing Detection Delay | 1.2S |
| LED | display work status |
| Size | 285*85*12mm |
This high-power equalization board only has an equalization effect and no charging/discharging protection. Therefore, the high power equalization board needs to be used together with the protection board.
Because the high-power equalization board generates a large amount of heat, it is designed separately from the conventional protection board to prevent heat from affecting the performance of the electronic components on the protection board and affecting the protection performance.
Please do not insert the cable terminal first and then solder the battery to prevent the board from being damaged by mistake.
Below more cheap passive battery balancer equalizer for your choice: 4S/8S/16S/32S Balance current 0.5A 1.0A 1.5A OEM is welcome.
We also supply active balancer models according to customers' requirements.
