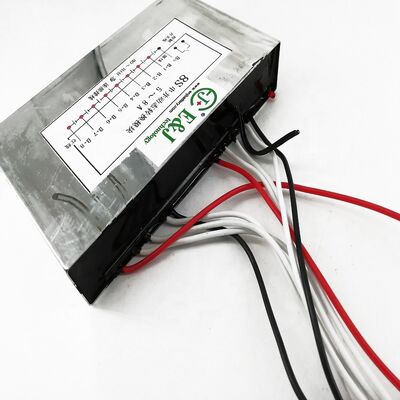

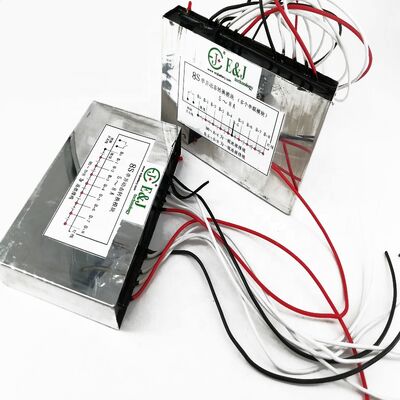

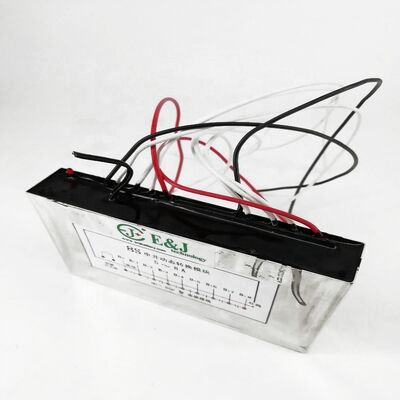

3A - 5A Balance Current Active Battery Equalizer 12V 24V 36V 48V 60V 72V 84V 96V 192V 384V

This active battery equalizer with 3A - 5A Balance Current suitable for all lifepo4, lithium-ion, lipolymer batteries widely used on big solar battery pack 12V 24V 48V and electric car vehicle battery packs over 100V 200V 384V 500V 600V or more.

Note:

• it can use for all lithium battery , such as Li-ion , Lipo, Lifepo4 LTO and so on
• it is only balancer , if you need protection board , can search in our store
• The equalization board is 14s, which can be connected in series by two 14s to form 20s, 21s, 24s. The middle 2 boards need to overlap , or 3pcs can be combined, but the middle crossover is required.

• This balanced version of the equalization current: 3~5A
• Balancer size: 125*98*26mm

After connecting the detection and balance lines as shown in the figure, after checking the correct, finally connect the 2 black signal lines to OK (the black signal line can be used for third-party control, including human control and BMS system control, need to control contact with us) , will tell how to connect), equalize the maximum current 3-5A, completely solve the battery inconsistency problem, the balance termination voltage difference is not more than 5mv (voltage difference ideal value 2-3mv), ensure that all batteries are fully charged, if the indicator light is on, After one minute or so, it does not light up, indicating that everything is normal. If it is still bright, it indicates that the connection is wrong or the battery voltage difference is too large, please check it as soon as possible.
