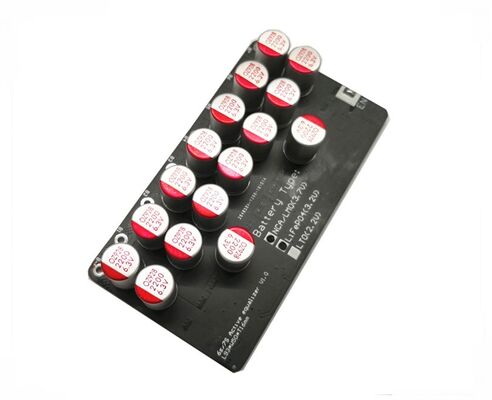

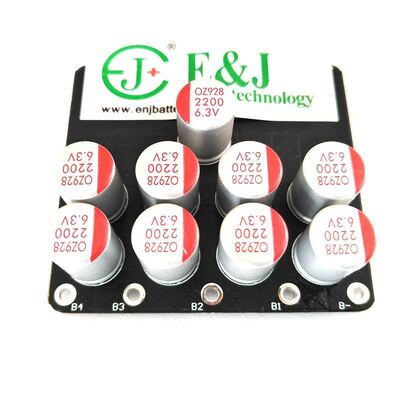

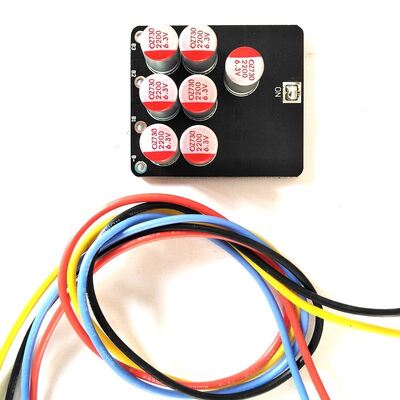

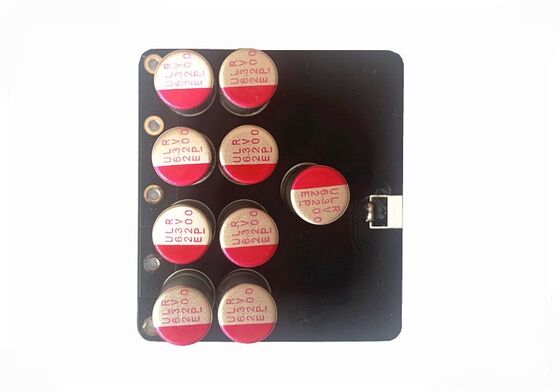

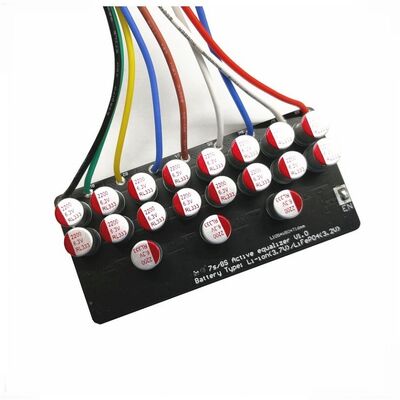

5A Active Equalizer Balancer 3S 4S 7S 6S 8S For Lifepo4 Lithium Lipo LTO Battery

5A Active Equalizer Balancer 3S 4S 7S 6S 8S Lifepo4 Lithium Lipo LTO Battery Energy active equalization module Fit Capacitor

we have the below Model as below:

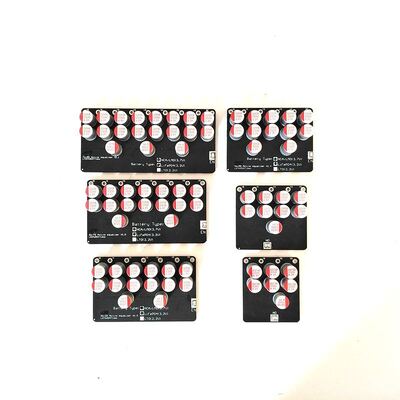

3S/4S/6S LTO only/6S/7S LTO only/7S/8S LTO only/8S

Before order,pls tell me which model do you need?

Feature

• Balance mode: Fit capacitor balance
• Working voltage 2.0-4.2V
• Undervoltage sleep value: Sleep voltage can be selected from 2.0V 3.0V 3.7V, supporting ternary lithium, lithium iron phosphate, lithium titanate
• Balance accuracy: less than 5mv Equilibrium current: 0.1V 1A 0.2V2A, the greater the voltage difference, the larger the current Balanced static power consumption: 12mA
• Suitable for battery capacity: 30Ah-300Ah
• Mentioned only LTO means this board only used on LTO battery , Not mention means the board can use on LI-ion and LiFePO4
