| Brand Name: | ENJBMS |
| Model Number: | ENJBMS2A4S100A |
| MOQ: | 1 |
| Price: | $72-120 |
|
Basic Configuration
|
|
|
Function
|
Configuration
|
|
Number of strings supported
|
4S
|
|
Continuous current
|
50A-300A
|
|
Number of NTCs
|
2 built in, 4 external
|
|
Balance Function
|
Active balancer 1A-3A
|
|
UART (non isolated)
|
Standard
|
|
Switch function
|
Optional (With/ Without)
|
|
Charging current limit
|
Optional (With/ Without)
|
|
Battery packs in parallel
|
Yes
|
|
History record
|
Optional (With/ Without)
|
|

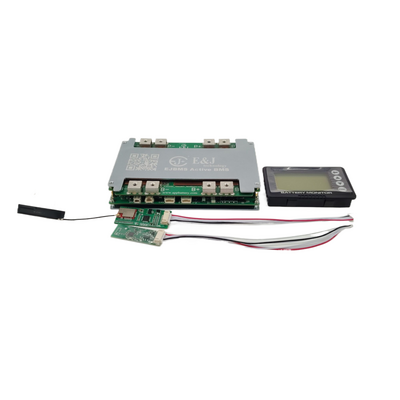

LCD display
|
Optional (With/ Without)
|
|

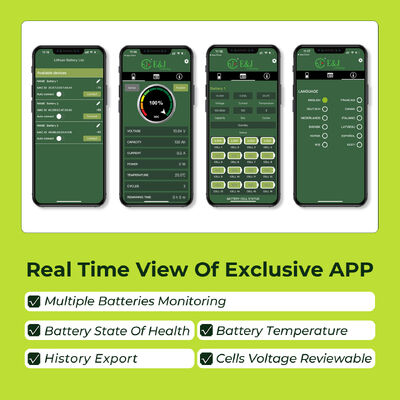

Bluetooth
|
Optional (With/ Without)
|
|
Heating function
|
Optional (With/ Without)
|
|

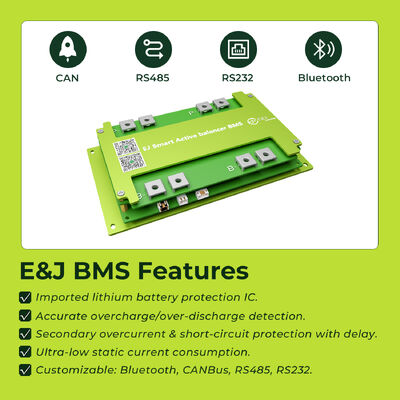

CAN communication
|
Optional (With/ Without)
|
|
RS485 communication
|
Optional (With/ Without)
|
|
Electrical parameters
|
|||
|
Item
|
Symbol
|
Content
|
Criterion
|
|
Over charge Protection
|
VCU1
|
Over charge detection voltage
|
3.75+0.025V (settablel)
|
|
tCU1
|
Over charge 1st detection delay time
|
1+0.5S (settable)
|
|
|
VCL1
|
Over charge 1st release voltage
|
3.60+0.05V (settable)
|
|
|
Over discharge protection
|
VDL
|
Over discharge detection voltage
|
2.50+0.08V (settable)
|
|
tDL
|
Over discharge detection delay time
|
1+0.5S (settable)
|
|
|
VDU
|
Over discharge release woltage
|
3.00+0.1V (settablel
|
|
|
Continue current
|
ICHG
|
Continue charge current
|
50A-100A (settable)
|
|
IDIS
|
Continue discharge current
|
50A-300A (settable
|
|
|
Over current protection
|
OCIOV1
|
Charge overcurrent detection current 1
|
300A (settable)
|
|
ODIOV1
|
Discharge overcurrent detection current 1
|
1000A (settable)
|
|
|
Short current protection
|
ISHORT
|
Short circuit detection current
|
Yes
|
|
tSHORT
|
Short circuit delay time
|
500US
|
|
|
Over Short current release
|
/
|
Over current & short current release
|
Load disconnection
|
|
Balance function
|
VBAL
|
Balance detection voltage
|
3.0v (settable)
|
|
Balance release current
|
2000mA
|
||
|
Temperature protection
|
NTC
|
NTC discharge temperature protection
|
40-85 (settable)
|
|
Internal resistance
|
RCHG
|
Resistance in charge
|
<50mohm
|
|
RDIS
|
Resistance in discharge
|
<50mohm
|
|
|
Current consumption
|
ISTB
|
Current consume in normal operation
|
<2250uA
|
