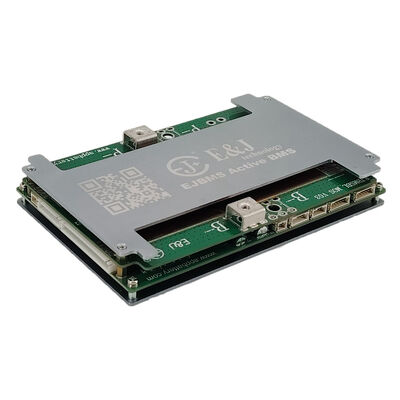

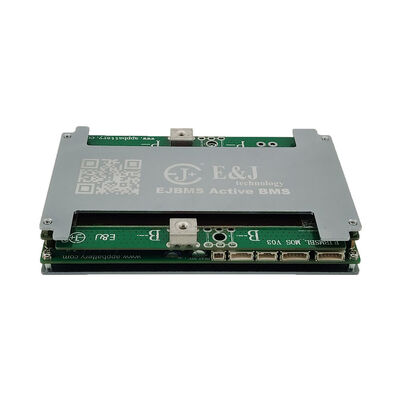

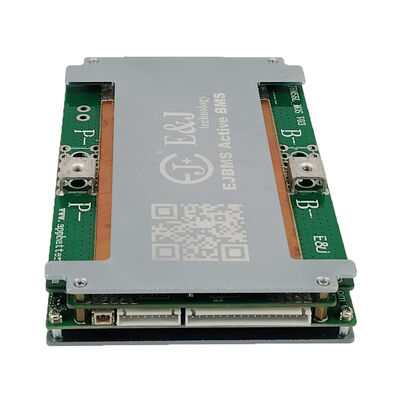

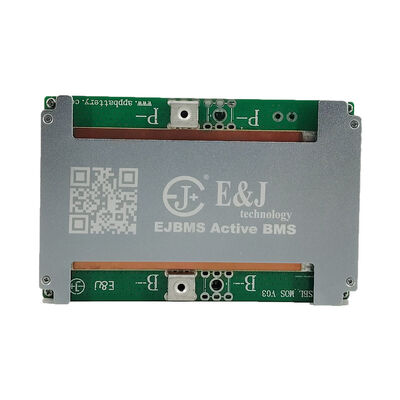

| Brand Name: | ENJBMS |
| Model Number: | ENJBMS2A8S100 |
| MOQ: | 1 |
| Price: | RM 739.71-813.68 |
Basic Configuration | |
Function | Configuration |
Number of strings supported | 8S |
Continuous current | 50A-300A |
Number of NTCs | 2 built in, 4 external |
Balance Function | Active balancer 1A-3A |
UART (non isolated) | Standard |
Switch function | Optional (With/ Without) |
Charging current limit | Optional (With/ Without) |
Battery packs in parallel | Yes |
History record | Optional (With/ Without) |

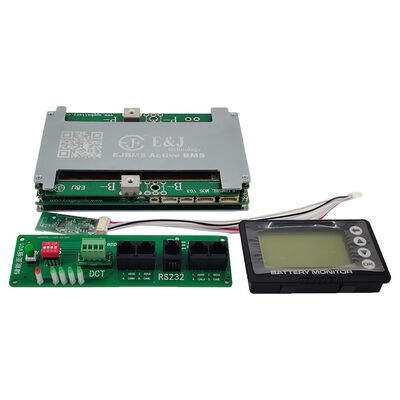

LCD display | Optional (With/ Without) |
Bluetooth | Optional (With/ Without) |
Heating function | Optional (With/ Without) |
CAN communication | Optional (With/ Without) |
RS485 communication | Optional (With/ Without) |
Electrical parameters | |||
Item | Symbol | Content | Criterion |
Over charge Protection | VCU1 | Over charge detection voltage | 3.75+0.025V (settablel) |
tCU1 | Over charge 1st detection delay time | 1+0.5S (settable) | |
VCL1 | Over charge 1st release voltage | 3.60+0.05V (settable) | |
Over discharge protection | VDL | Over discharge detection voltage | 2.50+0.08V (settable) |
tDL | Over discharge detection delay time | 1+0.5S (settable) | |
VDU | Over discharge release woltage | 3.00+0.1V (settablel | |
Continue current | ICHG | Continue charge current | 50A-100A (settable) |
IDIS | Continue discharge current | 50A-300A (settable | |
Over current protection | OCIOV1 | Charge overcurrent detection current 1 | 300A (settable) |
ODIOV1 | Discharge overcurrent detection current 1 | 1000A (settable) | |
Short current protection | ISHORT | Short circuit detection current | Yes |
tSHORT | Short circuit delay time | 500US | |
Over Short current release | / | Over current & short current release | Load disconnection |
Balance function | VBAL | Balance detection voltage | 3.0v (settable) |
Balance release current | 2000mA | ||
Temperature protection | NTC | NTC discharge temperature protection | 40-85 (settable) |
Internal resistance | RCHG | Resistance in charge | <50mohm |
RDIS | Resistance in discharge | <50mohm | |
Current consumption | ISTB | Current consume in normal operation | <2250uA |
