| Brand Name: | ENJBMS |
| Model Number: | ENJBMS2A4S200A |
| MOQ: | 1 |
| Price: | $72-120 |

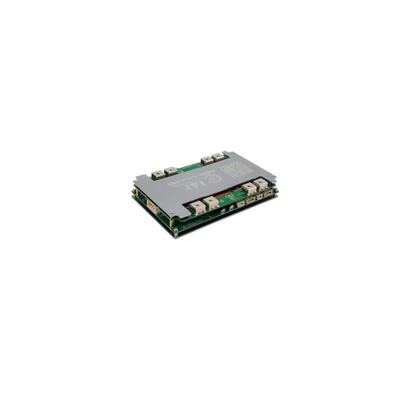

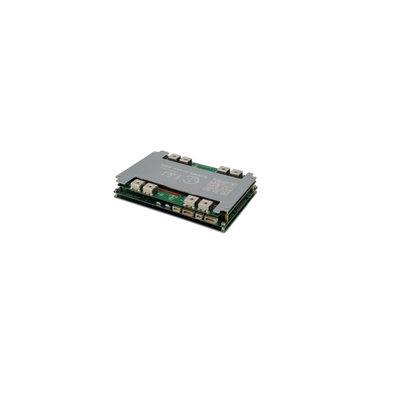

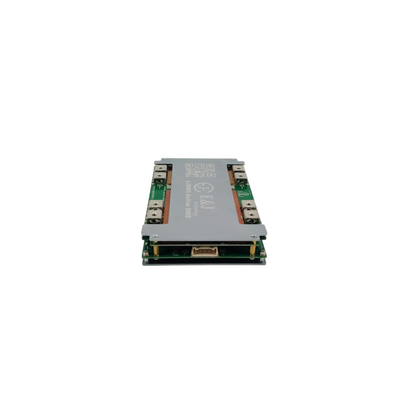

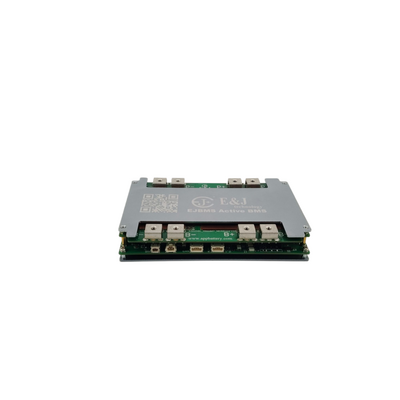

Designed specifically for sodium-ion batteries (Na-ion), not Li-ion
|
Basic Configuration
|
|
|---|---|
|
Function
|
Configuration
|
|
Number of strings supported
|
4S
|
|
Continuous current
|
50A-300A
|
|
Number of NTCs
|
2 built in, 4 external
|
|
Balance Function
|
Active balancer 1A-3A
|
|
UART (non isolated)
|
Standard
|
|
Switch function
|
Optional (With/ Without)
|
|
Charging current limit
|
Optional (With/ Without)
|
|
Battery packs in parallel
|
Yes
|
|
History record
|
Optional (With/ Without)
|
|

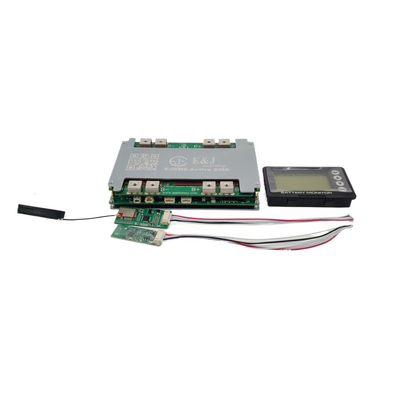

LCD display
|
Optional (With/ Without)
|
|
Bluetooth
|
Optional (With/ Without)
|
|
Heating function
|
Optional (With/ Without)
|
|
CAN communication
|
Optional (With/ Without)
|
|
RS485 communication
|
Optional (With/ Without)
|
|
Electrical parameters
|
|||
|---|---|---|---|
| Item | Symbol | Content | Criterion |
| Over charge Protection | VCU1 | Over charge detection voltage | 4.0+0.025V (settablel) |
| tCU1 | Over charge 1st detection delay time | 1+0.5S (settable) | |
| VCL1 | Over charge 1st release voltage | 3.8+0.05V (settable) | |
| Over discharge protection | VDL | Over discharge detection voltage | 2.0+0.08V (settable) |
| tDL | Over discharge detection delay time | 1+0.5S (settable) | |
| VDU | Over discharge release woltage | 4.20+0.1V (settablel | |
| Continue current | ICHG | Continue charge current | 50A-100A (settable) |
| IDIS | Continue discharge current | 50A-300A (settable | |
| Over current protection | OCIOV1 | Charge overcurrent detection current 1 | 300A (settable) |
| ODIOV1 | Discharge overcurrent detection current 1 | 1000A (settable) | |
| Short current protection | ISHORT | Short circuit detection current | Yes |
| tSHORT | Short circuit delay time | 500US | |
| Over Short current release | / | Over current & short current release | Load disconnection |
| Balance function | VBAL | Balance detection voltage | 3.0v (settable) |
| Balance release current | 2000mA | ||
| Temperature protection | NTC | NTC discharge temperature protection | 40-85 (settable) |
| Internal resistance | RCHG | Resistance in charge | <50mohm |
| RDIS | Resistance in discharge | <50mohm | |
| Current consumption | ISTB | Current consume in normal operation | <2250uA |
