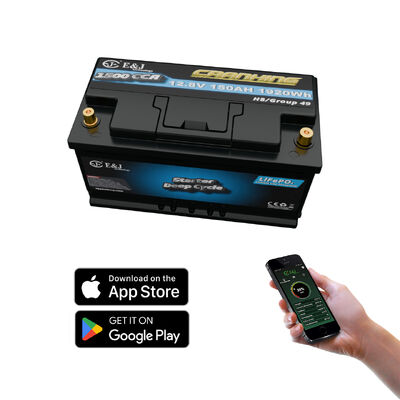

H8 Group 49 12V 150Ah 1500CCA Car Liquid Start Battery Pack Lifepo4 4000 Cycles Mercedes

Brand Name:	ENJ
Model Number:	EJ12150FEB-H
MOQ:	4

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Max Load Quantity(cells):

Battery Type:

Liquid

Cycle Life:

4000 Cycles

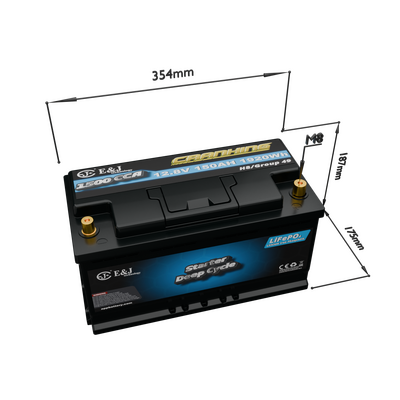

Dimension (L*W*H):

345*175*187mm

Application:

Boats, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts

Weight:

12.8KG

Operating Temperature(℃):

-20-60

Cathode Materials:

LiFePO4

Highlight:

1500CCA LiFePO4 Battery 12V

Mercedes LiFePO4 Battery 12V

150Ah LiFePO4 Battery 12V

Product Description

Specification

Parameters/ Models		50Ah	60Ah	100Ah	150Ah	200Ah
Electric	Nominal voltage	12.8V	12.8V	12.8V	12.8V	12.8V
	Nominal capacity	50Ah	60Ah	100Ah	150Ah	200Ah
	Stored energy	640Wh	768Wh	1280Wh	1920Wh	2560Wh
	Cold Cranking Amps (CCA)	700	900	1500	1500	1500
	Internal resistance	≤ 50mΩ	≤ 50mΩ	≤ 50mΩ	≤ 50mΩ	≤ 50mΩ
	Cycles	>5000 cycles	>5000 cycles	>5000 cycles	>5000 cycles	>5000 cycles
	Self discharge	< 3% per month	< 3% per month	< 3% per month	< 3% per month	< 3% per month
	Energy efciency	> 96%	> 96%	> 96%	> 96%	> 96%
Standard Charge	Charge voltage	14.6V ± 0.1V	14.6V ± 0.1V	14.6V ± 0.1V	14.6V ± 0.1V	14.6V ± 0.1V
	Charge mode	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage
	Maximum continuous charge current	20A/ 50A	20A/50A	30A/100A	50A/100A	50A/150A
	BMS charge cut-oﬀ voltage	60.8V ± 0.1V	60.8V ± 0.1V	60.8V ± 0.1V	60.8V ± 0.1V	60.8V ± 0.1V
Standard Discharge	Continuous discharge current	200A	200A	200A	200A	200A
Standard Discharge	BMS discharge cut-oﬀ voltage	14.8V ± 0.1V	14.8V ± 0.1V	14.8V ± 0.1V	14.8V ± 0.1V	14.8V ± 0.1V
Environment	Charge temperature range	0°C- 45°C @60±25%	0°C- 45°C @60±25%	0°C- 45°C @60±25%	0°C- 45°C @60±25%	0°C- 45°C @60±25%
	Discharge temperature range	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%
	Storage temperature	0°C – 40°C @60±25%	0°C – 40°C @60±25%	0°C – 40°C @60±25%	0°C – 40°C @60±25%	0°C – 40°C @60±25%
	IP protection level	IP65	IP65	IP65	IP65	IP65
Mechanical	Cell assembly	Prismatic	Prismatic	Prismatic	Prismatic	Prismatic
	Casing material	ABS	ABS	ABS	ABS	ABS
	Weight	6kg	8kg	11.5kg	15.9kg	22kg
	Terminal	M8	M8	M8	M8	M8
