Deep Cycle 12V 100Ah Cell Balanced LiFePO4 Lithium Ion Recharge Solar Battery 4000 Cycles

Brand Name:	E&J
Model Number:	EJ12100FEB-G24
MOQ:	4

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Max Load Quantity(cells):

Battery Type:

Liquid

Cycle Life:

4000 Cycles

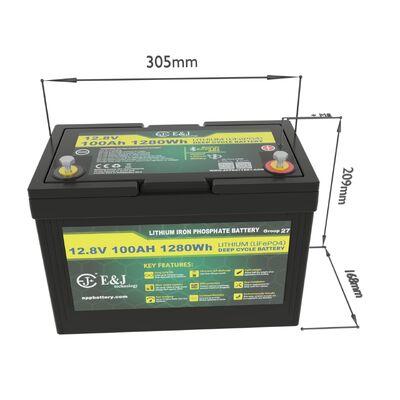

Dimension (L*W*H):

305*168*209mm(12.01*6.61*8.23in)

Application:

Boats, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts

Weight:

9.8KG(21.61lb)

Operating Temperature(℃):

-20 To +60

Cathode Materials:

LiFePO4

Anode Material:

LFP

Battery Size:

LFP

The Charging Ratio:

0.5C

The Discharge Rate:

Electric Energy:

1280

Highlight:

Recharge Solar Battery 4000 Cycles

Deep Cycle Recharge Solar Battery

Lithium Ion Recharge Solar Battery

Product Description

Specification

Parameters/ Models		50Ah	60Ah	100Ah
Electric	Nominal voltage	12.8V	12.8V	12.8V
	Nominal capacity	50Ah	60Ah	100Ah
	Stored energy	640Wh	768Wh	1280Wh
	Cold Cranking Amps (CCA)	700	900	1500
	Internal resistance	≤ 50mΩ	≤ 50mΩ	≤ 50mΩ
	Cycles	>5000 cycles	>5000 cycles	>5000 cycles
	Self discharge	< 3% per month	< 3% per month	< 3% per month
	Energy efciency	> 96%	> 96%	> 96%
Standard Charge	Charge voltage	14.6V ± 0.1V	14.6V ± 0.1V	14.6V ± 0.1V
	Charge mode	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage
	Maximum continuous charge current	20A/ 50A	20A/50A	30A/100A
	BMS charge cut-oﬀ voltage	60.8V ± 0.1V	60.8V ± 0.1V	60.8V ± 0.1V
Standard Discharge	Continuous discharge current	50A	60A	100A
Standard Discharge	BMS discharge cut-oﬀ voltage	14.8V ± 0.1V	14.8V ± 0.1V	14.8V ± 0.1V
Environment	Charge temperature range	0°C- 45°C @60±25%	0°C- 45°C @60±25%	0°C- 45°C @60±25%
	Discharge temperature range	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%
	Storage temperature	0°C – 40°C @60±25%	0°C – 40°C @60±25%	0°C – 40°C @60±25%
	IP protection level	IP65	IP65	IP65
Mechanical	Cell assembly	Cylindrical	Cylindrical	Cylindrical
	Casing material	ABS	ABS	ABS
	Weight	6kg	8kg	11.5 kg
	Terminal	M8	M8	M8
