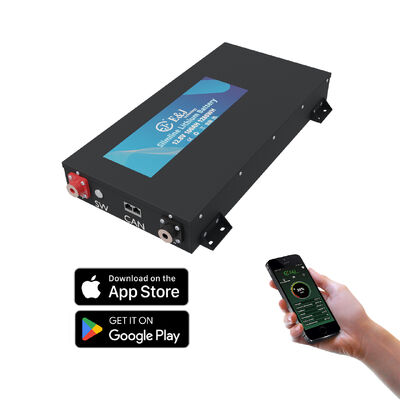

Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density

Brand Name:	EJ
Model Number:	EJ12200FEBSL
MOQ:	2
Price:	$349

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Max Load Quantity(cells):

Battery Type:

Liquid

Cycle Life:

6000 Cycles

Dimension (L*W*H):

440*220*60mm

Application:

Home Appliances, Boats, Golf Carts, SUBMARINES, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts

Weight:

25kgs

Operating Temperature(℃):

Cathode Materials:

LiFePO4

OEM/ODM:

Accepatable

Case Material:

Aluminium

Warranty:

3 Years

Communication:

CAN/ RS485

Anode Material:

LFP

The Charging Ratio:

0.5C

The Discharge Rate:

1-3C

Highlight:

12V 100Ah Lithium Ion Battery Pack

Ultra Slim Lithium Ion Battery Pack

Product Description

Specification

Parameters/ Models		100Ah	160Ah	230Ah
Electric	Nominal voltage	12.8V	12.8V	12.8V
	Nominal capacity	100Ah	160Ah	230Ah
	Stored energy	1280Wh	2048Wh	2944Wh
	Internal resistance	≤ 50mΩ	≤ 50mΩ	≤ 50mΩ
	Cycles	>3000 cycles	>3000 cycles	>3000 cycles
	Self discharge	< 3% per month	< 3% per month	< 3% per month
	Energy efciency	> 96%	> 96%	> 96%
Function	Heating	Optional	Optional	Optional
	ON/OFF Swithch	Optional	Optional	Optional
	Wireless Monitor	Optional	Optional	Optional
	CANbus/ RS485	Optional	Optional	Optional
Standard Charge	Charge voltage	14.6V ± 0.1V	14.6V ± 0.1V	14.6V ± 0.1V
	Charge mode	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage	CC/CV : Constant Current / Constant Voltage
	Maximum continuous charge current	50A/ 100A	50A/ 100A	50A/200A
	BMS charge cut-oﬀ voltage	14.8V ± 0.1V	14.8V ± 0.1V	14.8V ± 0.1V
Standard Discharge	Continuous discharge current	200A	200A	200A
	Maximum discharge current (30s)	400A	400A	450A
	BMS discharge cut-oﬀ voltage	10V	10V	10V
Environment	Charge temperature range	0°C- 45°C @60±25%	0°C- 45°C @60±25%	0°C- 45°C @60±25%
	Discharge temperature range	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%	-20°C – 60°C @60±25%
	Storage temperature	0°C – 40°C @60±25%	0°C – 40°C @60±25%	0°C – 40°C @60±25%
	IP protection level	IP65	IP65	IP65
Mechanical	Cell assembly	Prismatic	Prismatic	Prismatic
	Casing material	Aluminium	Aluminium	Aluminium
	Dimensions	440mm x 220mm x 60mm	725mm x 265mm x 60mm	725mm x 325mm x 60mm
	Weight	14 kg	22.4kg	32.2kg
	Terminal	M8	M8	M8
