| Brand Name: | EJ |
| Model Number: | EJ-LFP-12100FEB |
| MOQ: | 1 |
| Price: | AED 1,039.51-1,233.95 |
|
Technical Specifcations
|
|
|
||
|
Electric
|
Nominal voltage
|
12.8V
|
||
|
Nominal capacity
|
100 Ah
|
|||
|
Stored
energy
|
1280 Wh
|
|||
|
Internal resistance
|
≤ 50mΩ
|
|||
|
Cycles
|
>2000 cycles
(see chart)
|
|||
|
Self discharge
|
< 3% per month
|
|||
|
Energy efciency
|
> 96%
|
|||
|
Standard Charge
|
Charge voltage
|
14.6V
± 0.1V
|
||
|
Charge mode
|
CC/CV
: Constant Current / Constant Voltage
|
|||
|
Maximum continuous charge current
|
10A/ 20A
|
|||
|
BMS charge
cut-off voltage
|
14.8V ± 0.1V
|
|||
|
Standard Discharge
|
Continuous discharge current
|
50 A
|
||
|
Maximum discharge current
|
100 A
|
|||
|
BMS discharge cut-off voltage
|
10 V
|
|||
|
Environment
|
Charge temperature range
|
0°C- 45°C @60±25%
|
||
|
Discharge temperature range
|
-20°C – 60°C @60±25%
|
|||
|
Storage temperature
|
0°C – 40°C @60±25%
|
|||
|
IP protection level
|
IP67
|
|||
|
Mechanical
|

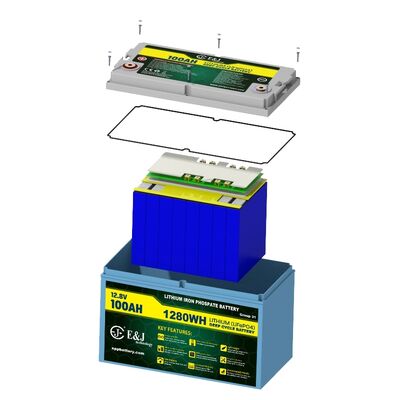

Cell assembly
|
Prismatic
|
|
Casing material
|
ABS
|
|
|
Dimensions
|
330mm * 173mm*
2160mm
|
|
|
Weight
|
11.8 kg
|
|
|
Terminal
|
M8
|
