| Brand Name: | E&J |
| Model Number: | EJDC60A |
| MOQ: | 1 |
| Price: | $168-200 |

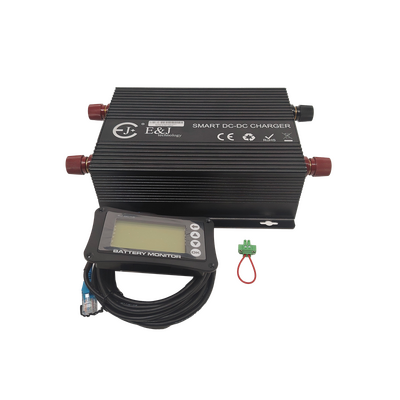

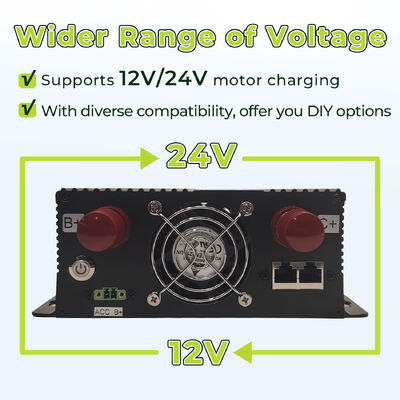

60A MPPT Solar With LCD Display Compatible 12V/24V Engine Start Detection APP Adjustable
EJDC60A is one clause 4-fold synchronous rectification buck and boost DC/DC converter controller. This synchronous rectification buck and boost DC/DC converter controller has both buck and boost operating modes, and can be used for conversions where the input voltage is higher,lower,or equal to the output voltage. It seamlessly transitions between different operating modes with low noise. It uses current mode control to support adjustable input and output, making it an ideal choice for voltage regulators, batteries, and super capacitor chargers in automotive, industrial, telecommunications, and battery-powered systems.
| Model: EJ-DC40A | Model: EJ-DC60A | ||
| Type | Multi Stage | Multi Stage | |
| DC Battery Input | 12.5 - 16.0V | 12.5 - 16.0V | |
| Solar Input | 16.0 - 25.0V | 16.0 - 25.0V | |
| Output I Charging Voltage | 14.4 - 15.4 V (stops charging when alternator output or vehicle battery below 12.5V | 14.4 - 15.4 V (stops charging when alternator output or vehicle battery below 12.4V | |
| DC Output Current | 40A | 60A | |
| Solar Output Current | 40A | 60A | |
| Minimum Start Voltage | 2.5V - for battery being charged | 2.5V - for battery being charged | |
| Charge Control | |||
| Soft Start | Yes | Yes | |
| Soft Charge Current | 40A | 60A | |
| Bulk Charge Voltage | 14.7V (AGM/Gel), 13.5V (Lead Acid), 15.4V (Calcium), 14.4V (LiON) |
14.7V (AGM/Gel), 14.4V (Lead Acid), 15.4V (Calcium), 14.4V (LiON) |
|
| Absorption | Constant volta ge with automatic amperage control |
Constant voltage with automatic amperage control |
|
| Float Charge Current | 13.SV (AGM/Gel), 14.4V (Lead Acid), 13.5V (Calcium) |
13.SV (AG M/Gel), 13.SV (Lead Acid), 13.5V (Calcium) |
|
| Float Charge Current | 100mA | 100mA | |
| Battery Range | 60 to 500Ah | 80 to 700Ah | |
| Recommended Cable Cross-Section | |||
| 0 - 1 metres | 10 AWG | 8 AWG | |
| 1 - 5 metres | 8 AWG | 6 AWG | |
| 5 + metres | 6 AWG | 4 AWG | |
